Description

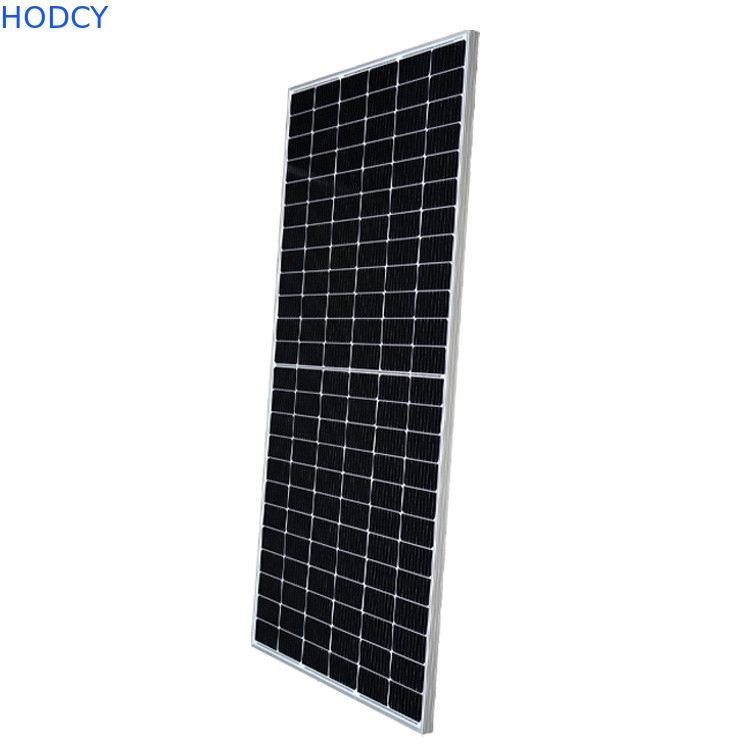

Monocrystalline Photovoltaic Cell Solar Panels 510w 510watt
Products Description
|
Electrical Parameters
|
||||||
|
Module
|
HCR480M-96 ~ HCR530M-96
|
|||||
| Encapsulation |
Class/Eva/Cell/Eva/Backsheet
|
|||||
| Maximum Power Pmax(W) |
480
|
490
|
500
|
510
|
520
|
530
|
| Maximum Power Voltage(Vmp/V) |
48.4
|
48.58 | 48.7 |
48.94
|
49.12 |
49.3
|
| Maximum Power Current(Imp/A) |
10.33
|
10.51
|
10.69
|
10.88
|
11.06
|
11.24
|
| Open Circuit Voltage(Voc/V) |
58.08
|
58.3
|
58.44
|
58.73
|
58.95
|
59.16
|
| Short Circuit Currrnt(Isc/A) |
10.54
|
10.72
|
10.78
|
11.09
|
11.28
|
11.46 |
| Module Efficiency(%) |
19.51
|
19.9 | 20.35 | 20.68 |
21.07
|
21.46
|
| Power Tolerance(W) |
0~+5W
|
|||||
| Temperature Coefficient of Isc(αIsc) |
+0.059%/℃
|
|||||
| Temperature Coefficient of Voc(βVoc) |
-0.330%/℃
|
|||||
| Temperature Coefficient of Pmax(γVoc) |
-0.410%/℃
|
|||||
| STC |
Irradiance 1000w/㎡, Cell Temperature 25℃, Air Mass 1.5
|
|||||
Product Display
Glass
* Anti-reflective glass
* High-transmittance and low reflection Increase model efficiency
* High mechanical strength
* High-transmittance and low reflection Increase model efficiency
* High mechanical strength
Solar Cell
* High model efficiency up to 20%
* High shunt-resistance: adapt the several environmental conditions
* High PID resistant
* Low breakage rate
* Uniform color
* High PID resistant
* Low breakage rate
* Uniform color
Frame
*Optional silvery or black frame
* Tensile Strength Frame
*Boost bearing capability and prolong service life
* Tensile Strength Frame
*Boost bearing capability and prolong service life
Junction Box
* Waterproofness Junction Box
* Innovative Full-Glue-Filled Combination of series circuit and parallel circuit, reduced internal power loss Quality diode ensures module running safety
* Heat dissipation
* Long service life
* Innovative Full-Glue-Filled Combination of series circuit and parallel circuit, reduced internal power loss Quality diode ensures module running safety
* Heat dissipation
* Long service life
